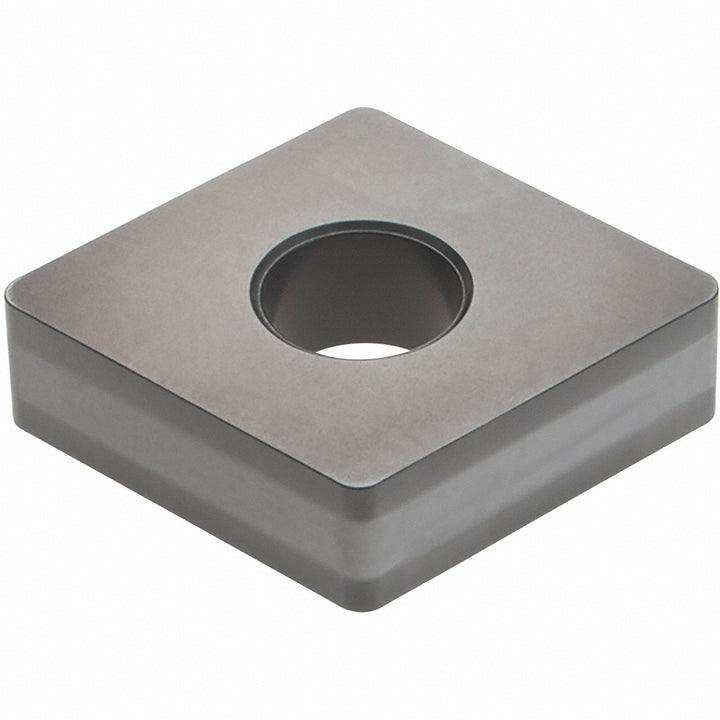

ISO 13399 Solid Carbide Insert, Grade IC5005, TiCN - Iscar 5550237

Iscar

ISO 13399 Solid Carbide Insert, Grade IC5005, TiCN - Iscar 5550237

MFR# 5550237ISO/ANSI# ISO 13399Series Isoturn

$32.85List $41.40 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC5005
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5550237 is a ISO 13399 solid carbide indexable insert, grade IC5005, TiCN coated. Suited for cast iron, steel.

Specifications

Chip breakerA
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Included angle80.0
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCNMA
Insert thickness in1/4
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC5005
Maximum depth of cut0.3937
Primary workpiece materialCast Iron; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
