Iscar

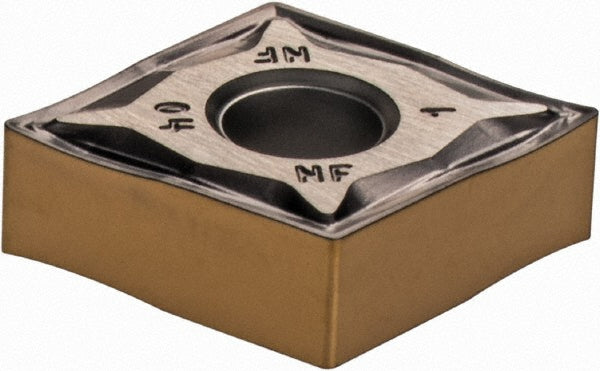

CNMG 431-NF Solid Carbide Insert, Grade IC807, TiN - Iscar 5550243
MFR# 5550243ISO/ANSI# CNMG 431-NFCat# CNMG 431-NFSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5550243 is a CNMG 431-NF solid carbide indexable insert, grade IC807, TiN coated. Suited for universal.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 431-NF
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 431-NF
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
