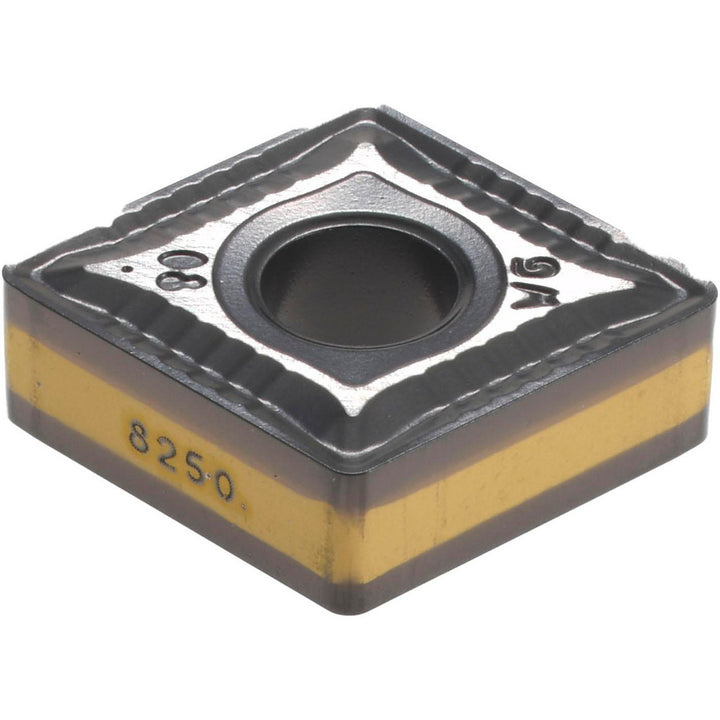

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5550249

Iscar

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5550249

MFR# 5550249ISO/ANSI# CNMG120408Series Isoturn

$18.01List $23.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC8250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5550249 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerWG
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturer gradeIC8250
Maximum depth of cut0.1378
Primary workpiece materialStainless Steel; Steel
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
