Iscar

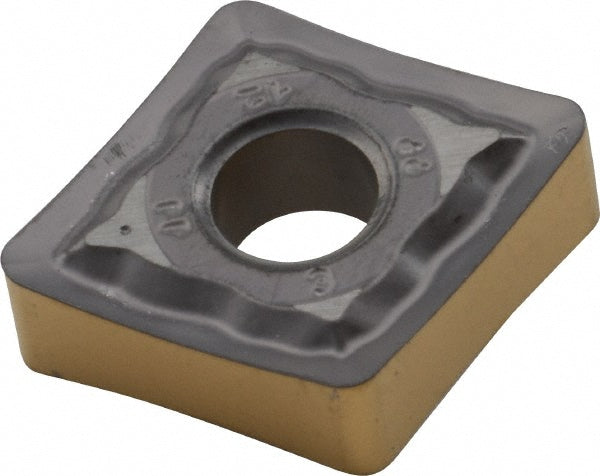

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550253
MFR# 5550253ISO/ANSI# ISO 13399Series Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC807
CoatingTiAlN
Description
The Iscar 5550253 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0472
Included angle80.0
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Iso codeISO 13399
Manufacturer gradeIC807
Maximum depth of cut0.1570
RakePositive
StandardsISO 13399
Tolerance codeM
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
