Iscar

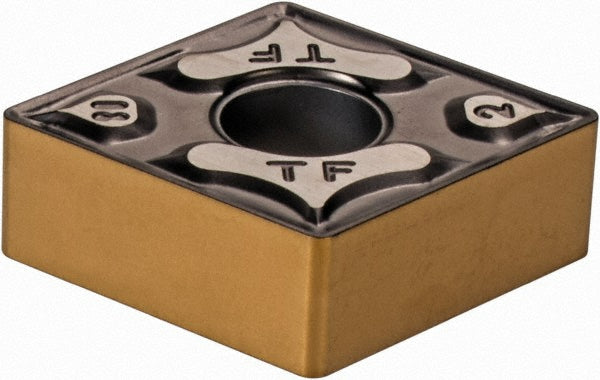

CNMG 542-TF Carbide Insert, Grade IC807, TiN - Iscar 5550256
MFR# 5550256ISO/ANSI# CNMG160608Cat# CNMG 542-TFSeries Isoturn
$28.39List $36.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC807
MaterialCarbide
CoatingTiN
Description
The Iscar 5550256 is a CNMG 542-TF carbide indexable insert, grade IC807, TiN coated. Suited for universal.
Specifications
Ansi insert codeCNMG542
Ansi size code542
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Included angle80
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6260
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 542-TF
Iso insert codeCNMG160608
Iso size code160608
Length range0.6000 - 0.6500
Manufacturers catalog numberCNMG 542-TF
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.2360
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
