Iscar

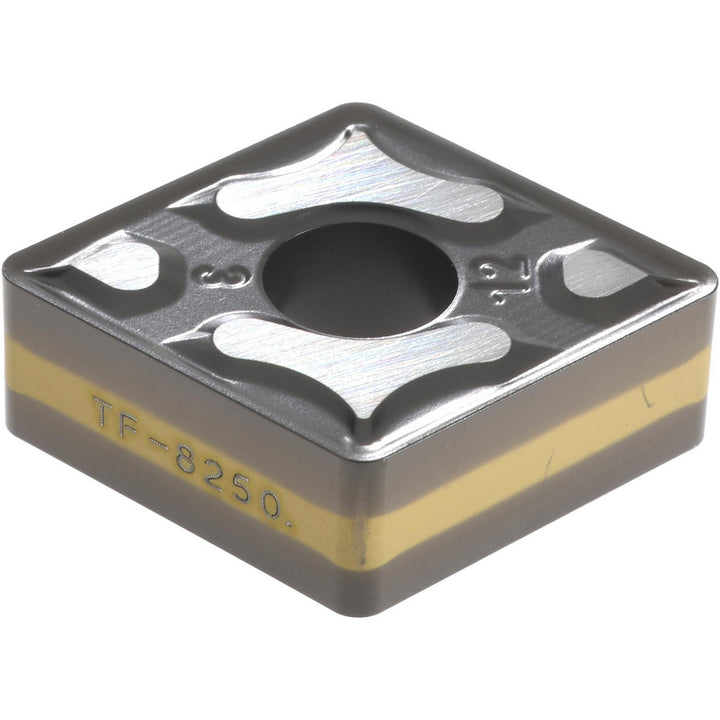

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5550258
MFR# 5550258ISO/ANSI# CNMG160612Series Isoturn
$30.72List $39.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5550258 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated.
Specifications
Ansi insert codeCNMG543
Ansi size code543
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6260
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Iso insert codeCNMG160612
Iso size code160612
Length range0.6000 - 0.6500
Manufacturer gradeIC8250
Maximum depth of cut0.2362
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
