Iscar

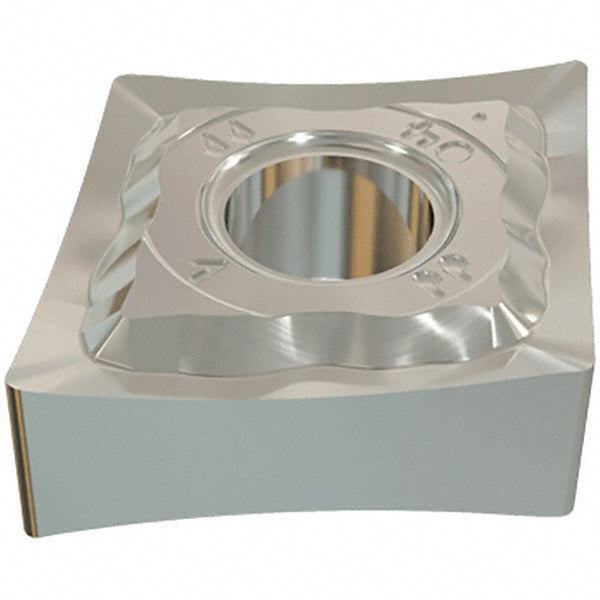

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550263
MFR# 5550263ISO/ANSI# ISO 13399Series Isoturn
$37.03List $47.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550263 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Included angle80.0
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.3150
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
