Iscar

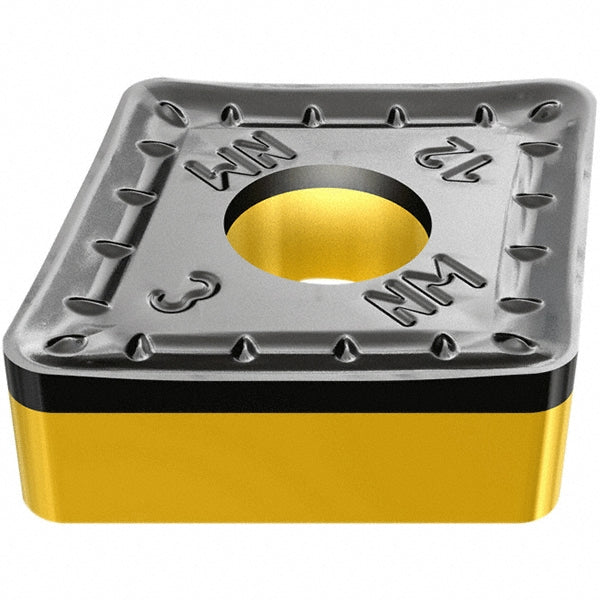

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN/Al2O3/TiN - Iscar 5550269
MFR# 5550269ISO/ANSI# ISO 13399Series Isoturn
$18.01List $23.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5550269 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN/Al2O3/TiN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNM
Clearance codeN
Coating finishTiCN/Al2O3/TiN
Coating processPVD
Corner radius in3/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleCNMM
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC8250
Maximum depth of cut0.2362
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
