Iscar

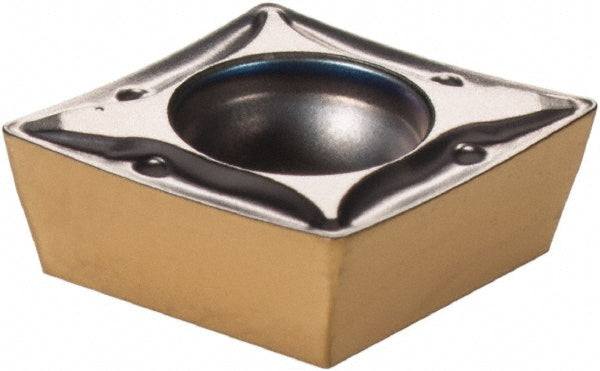

CPMT 3-1-PF Solid Carbide Insert, Grade IC807, TiN - Iscar 5550287
MFR# 5550287ISO/ANSI# CPMT 3-1-PFCat# CPMT 3-1-PFSeries Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5550287 is a CPMT 3-1-PF solid carbide indexable insert, grade IC807, TiN coated. Suited for universal.
Specifications
Chip breakerPF
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3740
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT 3-1-PF
Length range0.3000 - 0.4000
Manufacturers catalog numberCPMT 3-1-PF
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeM
