Iscar

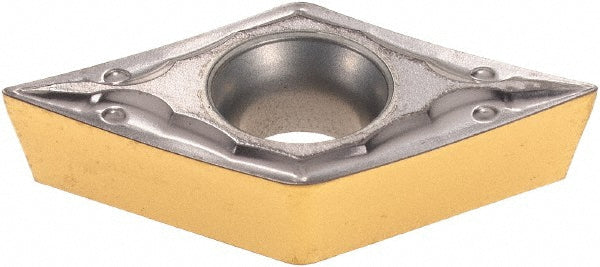

DCMT 3-0-PF Solid Carbide Insert, Grade IC807, TiN - Iscar 5550302
MFR# 5550302ISO/ANSI# DCMT 3-0-PFCat# DCMT 3-0-PFSeries Isoturn
$19.65List $25.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5550302 is a DCMT 3-0-PF solid carbide indexable insert, grade IC807, TiN coated. Suited for universal.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.1730
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4570
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 3-0-PF
Length range0.4000 - 0.5000
Manufacturers catalog numberDCMT 3-0-PF
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.0980
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
