Iscar

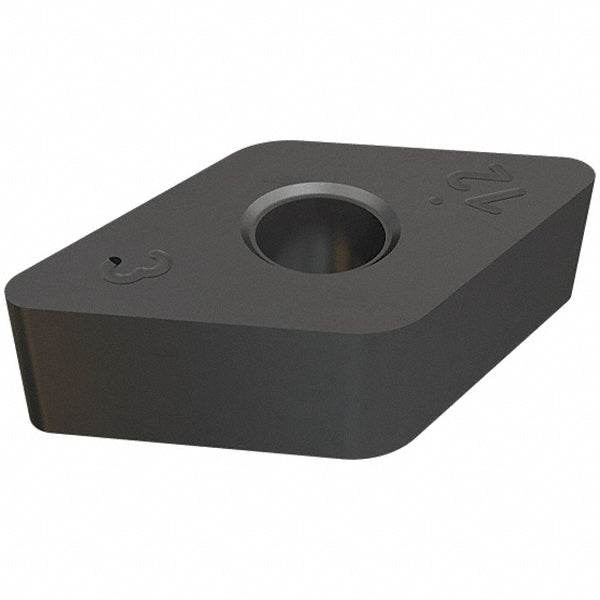

ISO 13399 Solid Carbide Insert, Grade IC5005, TiCN - Iscar 5550310
MFR# 5550310ISO/ANSI# ISO 13399Series Isoturn
$21.21List $27.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC5005
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5550310 is a ISO 13399 solid carbide indexable insert, grade IC5005, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleDNMA
Insert thickness in3/16
Iso codeISO 13399
Manufacturer gradeIC5005
Maximum depth of cut0.1570
Primary workpiece materialCast Iron; Steel
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
