Iscar

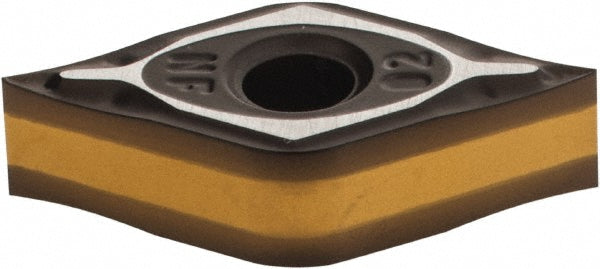

ISO 13399 Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5550312
MFR# 5550312ISO/ANSI# ISO 13399Series Isoturn
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5550312 is a ISO 13399 solid carbide indexable insert, grade IC8150, TiCN coated. Suited for p.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0080
Hole diameter0.1500
Included angle55.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.4580
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code330
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC8150
Maximum depth of cut0.0984
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialK
StandardsISO 13399
Stocking categoryD
Tolerance codeM
