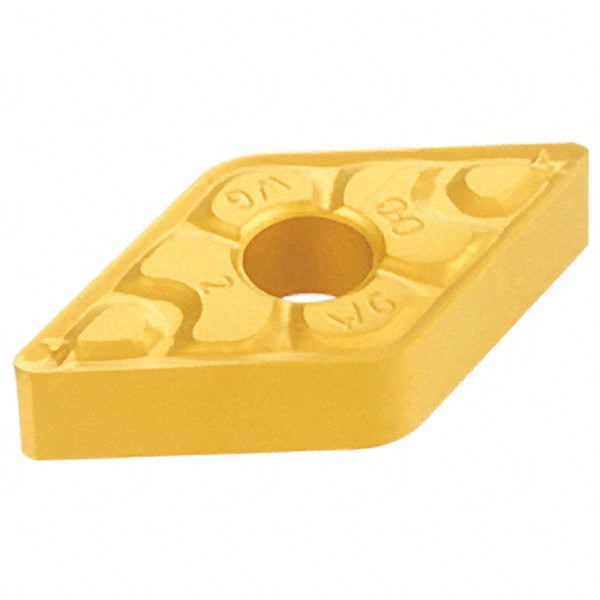

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5550324
MFR# 5550324ISO/ANSI# ISO 13399Series Isoturn
$23.93List $30.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5550324 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerWG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC8250
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
