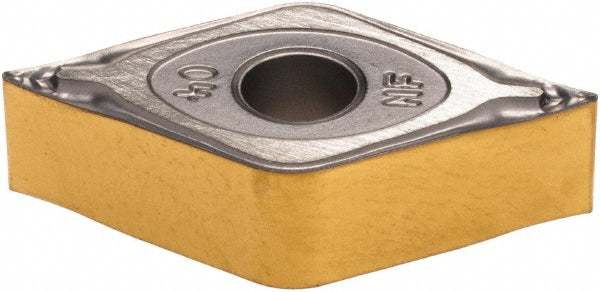

DNMG 441-NF Solid Carbide Insert, Grade IC807, TiN - Iscar 5550327
MFR# 5550327ISO/ANSI# DNMG 441-NFCat# DNMG 441-NFSeries Isoturn
$25.11List $32.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5550327 is a DNMG 441-NF solid carbide indexable insert, grade IC807, TiN coated. Suited for universal.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code441
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 441-NF
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG 441-NF
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
