Iscar

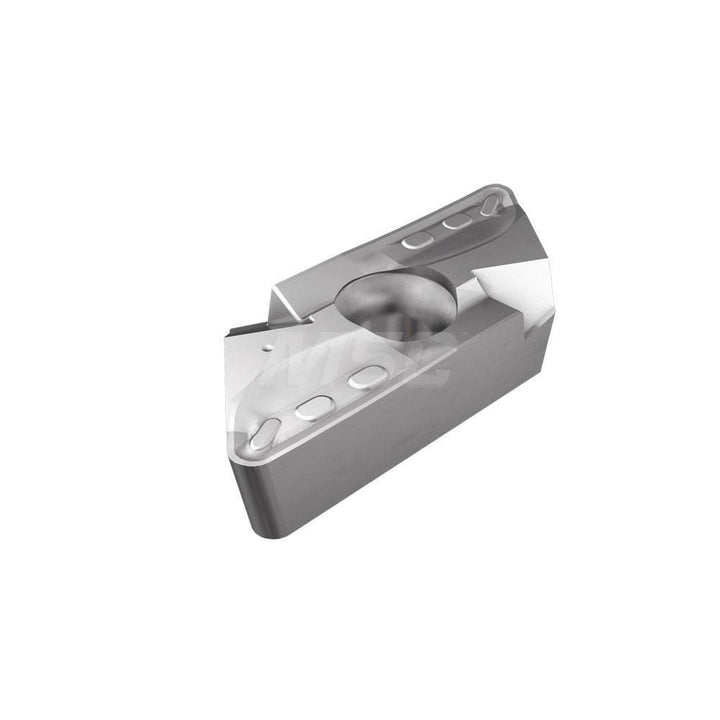

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550343
MFR# 5550343ISO/ANSI# ISO 13399Series KNMX
$19.88List $25.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5550343 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
ApplicationsProfiling; Turning
ChipbreakerRP
Coating finishTiAlN
Coating processPVD
Corner radius0.5000
Hole diameter0.3750
Included angle55
Inscribed circle in3/8
Insert handRight Hand
Insert height0.1875
Insert holding methodClamp; Pin
Insert length0.7770
Insert materialCarbide
Insert size code1604
Insert styleKNMX
Iso codeISO 13399
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.2590
Msc manufacturer numberKNMX 160405-RP
Number of cutting edges2
Primary workpiece materialUniversal
RakePositive
Relief angle7
ShapeParallelogram
Side length0.7770
StandardsKNMX 160405-RP
Thickness in3/16
Width in3/8
