Iscar

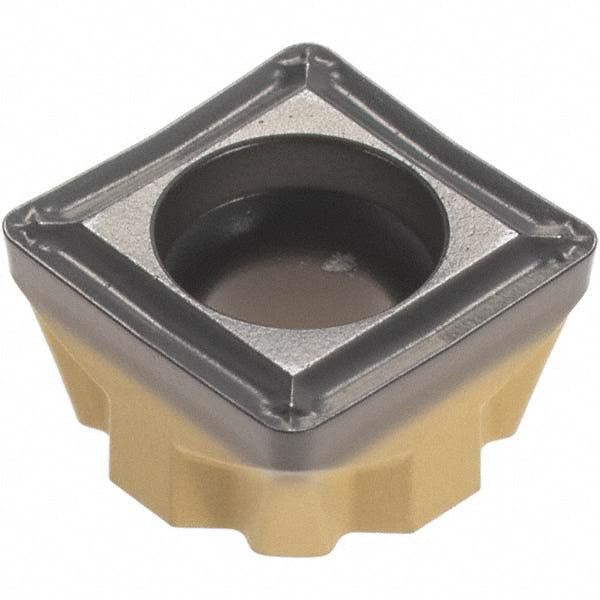

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5550399
MFR# 5550399ISO/ANSI# ISO 13399Series ChamTurn
$17.55List $22.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5550399 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.1770
Included angle90.0
Inscribed circle in3/8
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size code100508
Insert styleSCMT
Insert thickness0.1970
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel; Steel
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in3/8
