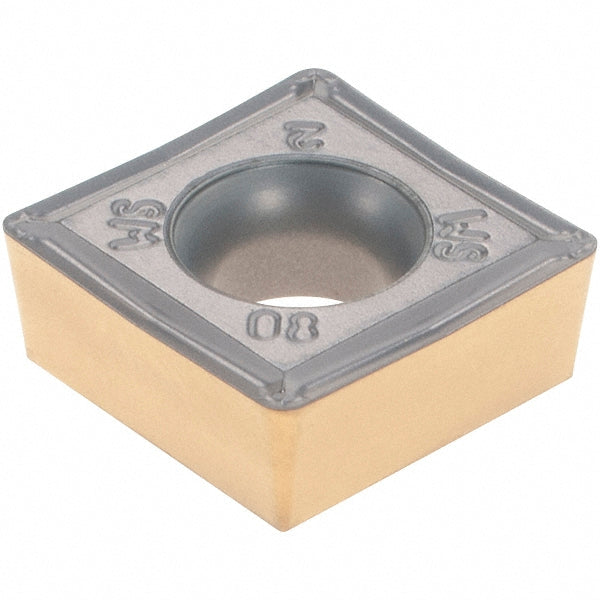

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550409
MFR# 5550409ISO/ANSI# ISO 13399Series Isoturn
$18.08List $22.80
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550409 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2165
Included angle90.0
Inscribed circle in1/2
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size code432
Insert styleSCMT
Insert thickness in3/16
Iso codeISO 13399
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1575
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
Width in1/2
