Iscar

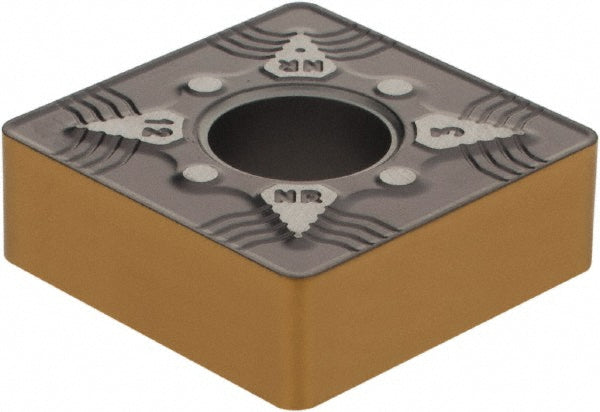

SNMG643 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550427
MFR# 5550427ISO/ANSI# SNMG643Series Isoturn
$40.47List $51.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550427 is a SNMG643 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerNR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.3130
Included angle90.0
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG643
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.3150
Primary workpiece materialM; P; S
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in3/4
