Iscar

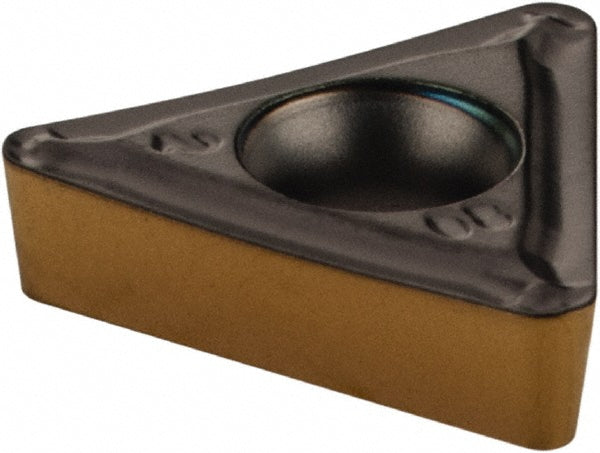

TCMT21.52 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550447
MFR# 5550447ISO/ANSI# TCMT21.52Cat# TCMT21.52Series Isoturn
$13.41List $17.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550447 is a TCMT21.52 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1102
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4330
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code22
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT21.52
Length range0.4000 - 0.5000
Manufacturers catalog numberTCMT21.52
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.0984
Primary workpiece materialM; P; S
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
