Iscar

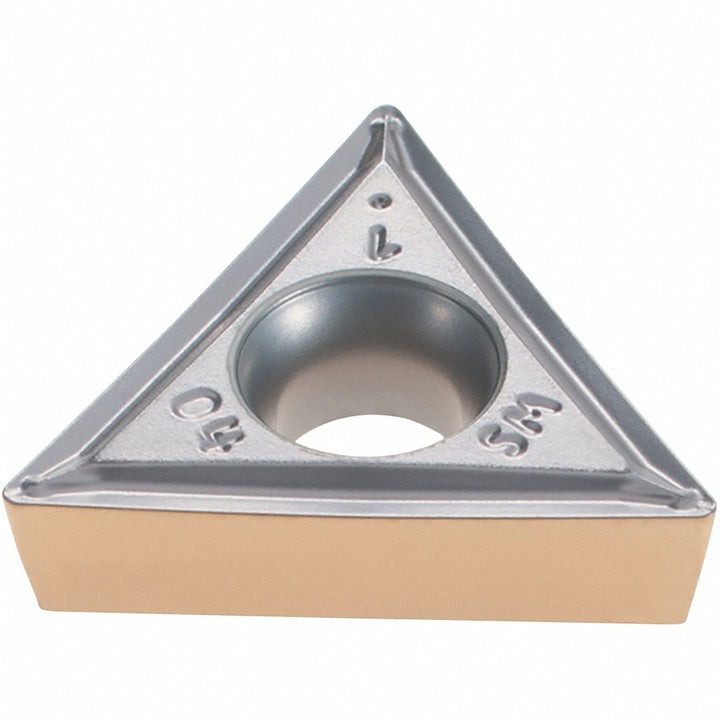

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550450
MFR# 5550450ISO/ANSI# ISO 13399Series Isoturn
$19.03List $24.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550450 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code3-1
Insert styleTCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC807
Maximum depth of cut0.1180
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
