Iscar

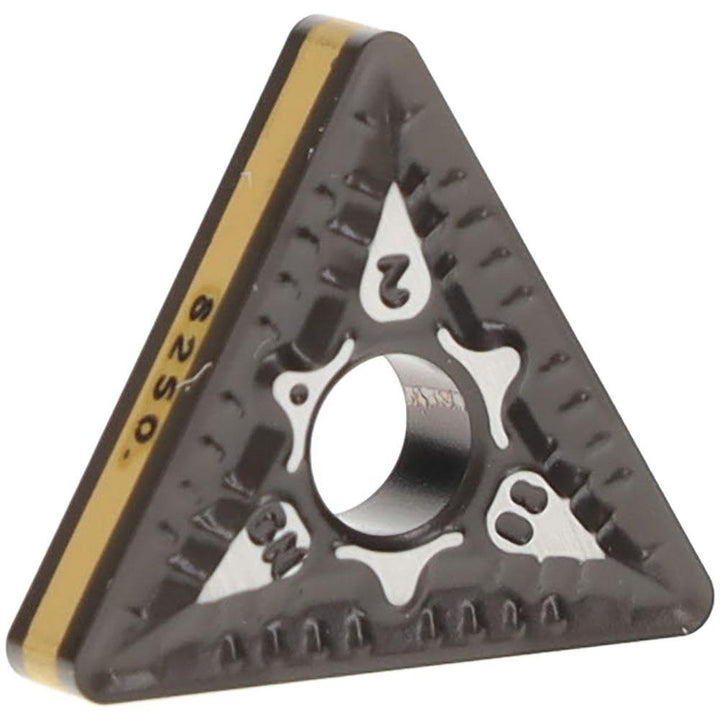

Triangle 3/8" IC Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5550457
MFR# 5550457
$10.84List $13.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5550457 is a solid carbide indexable insert, grade IC8250, TiCN coated.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code322
Insert styleTNMG
Insert thickness in1/8
Manufacturer gradeIC8250
Relief angle0
Stocking categoryD
Tolerance codeM
