Iscar

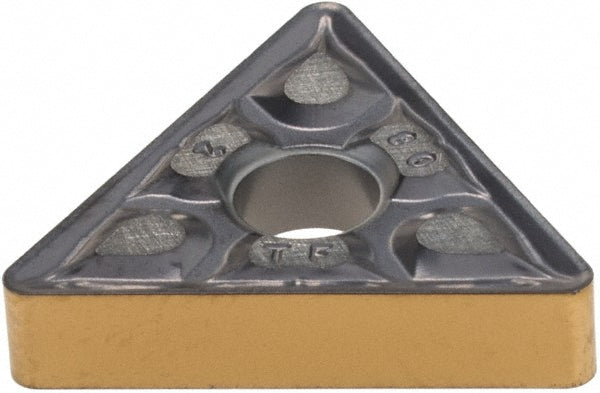

Triangle 3/8" IC Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550458
MFR# 5550458Series Isoturn
$9.90List $12.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550458 is a solid carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6500
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code322
Insert styleTNMG
Insert thickness in1/8
Length range0.6500 - 0.7000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1180
RakePositive
Relief angle0
Stocking categoryD
Tolerance codeM
