Iscar
ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550467
MFR# 5550467ISO/ANSI# ISO 13399Series Isoturn
$19.26List $24.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIC807
MaterialCarbide
CoatingTiAlN
Description

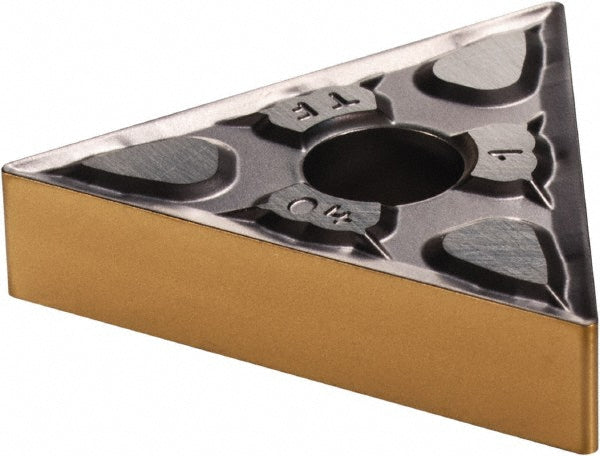

The Iscar 5550467 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Included angle60
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1378
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
