Iscar

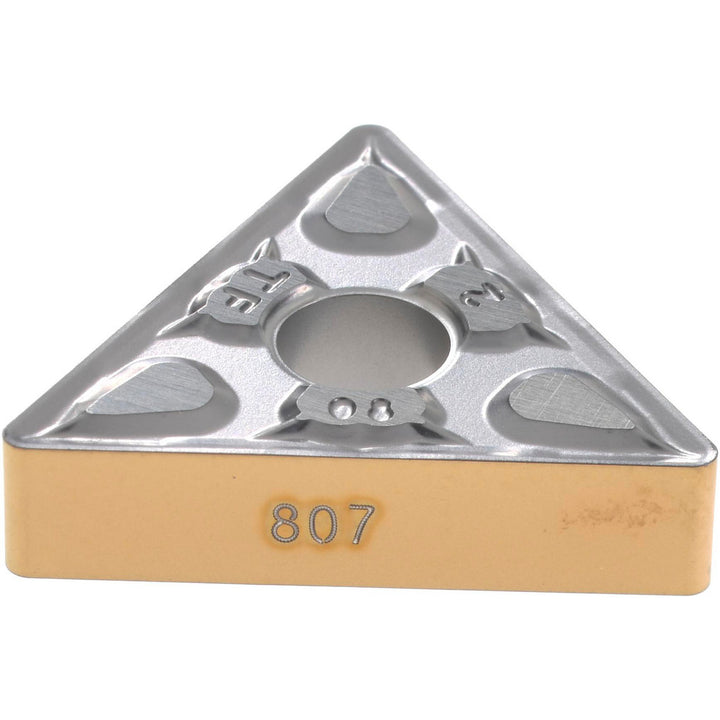

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550471
MFR# 5550471ISO/ANSI# TNMG220408Series Isoturn
$19.26List $24.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeT - Triangle
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5550471 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Ansi insert codeTNMG432
Ansi size code432
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Included angle60
Inscribed circle0.5000
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Iso codeISO 13399
Iso insert codeTNMG220408
Iso size code220408
Manufacturer gradeIC807
Maximum depth of cut0.1570
Primary workpiece materialUniversal
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
