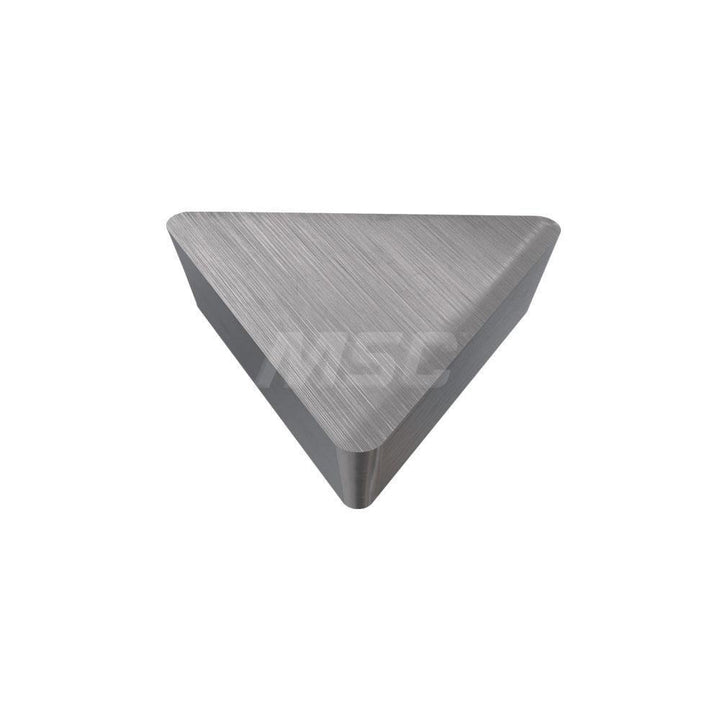

TPUN 160308 Solid Carbide Insert, Grade IC5005, TiCN - Iscar 5550492

Iscar

TPUN 160308 Solid Carbide Insert, Grade IC5005, TiCN - Iscar 5550492

MFR# 5550492ISO/ANSI# TPUN 160308Cat# TPU 322 IC5005Series ISCARMILL

$13.64List $17.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC5005
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5550492 is a TPUN 160308 solid carbide indexable insert, grade IC5005, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeTPU 322 IC5005
Chip breakerFlat Top
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge effective length0.5984
Cutting edge styleHoned
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code322
Insert styleTPU
Iso codeTPUN 160308
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberTPU 322 IC5005
Manufacturer gradeIC5005
Material applicationSteel; Cast Iron; Hard Material
Maximum depth of cut0.5984
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.6299
