ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550496

Iscar

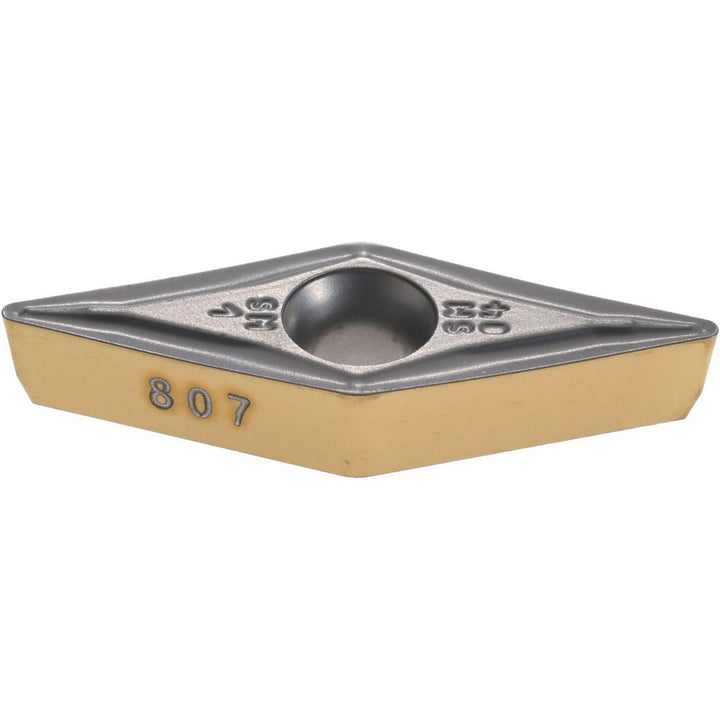

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550496

MFR# 5550496ISO/ANSI# VCMT110304Series Isoturn

$24.09List $30.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5550496 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated.

Specifications

Ansi insert codeVCMT221
Ansi size code221
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Hole diameter0.1142
Included angle35
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4370
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVCMT
Insert thickness in1/8
Iso codeISO 13399
Iso insert codeVCMT110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturer gradeIC807
Maximum depth of cut0.1180
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
