Iscar

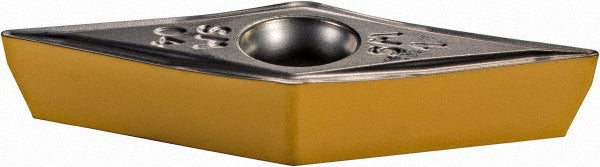

VCMT 331-SM Solid Carbide Insert, Grade IC807, TiN - Iscar 5550498
MFR# 5550498ISO/ANSI# VCMT 331-SMCat# VCMT 331-SMSeries Isoturn
$25.27List $32.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5550498 is a VCMT 331-SM solid carbide indexable insert, grade IC807, TiN coated.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1730
Included angle35.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeVCMT 331-SM
Length range0.6500 - 0.7000
Manufacturers catalog numberVCMT 331-SM
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.0980
Multi use applicationBoring
Multi use toolYes
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
