Iscar

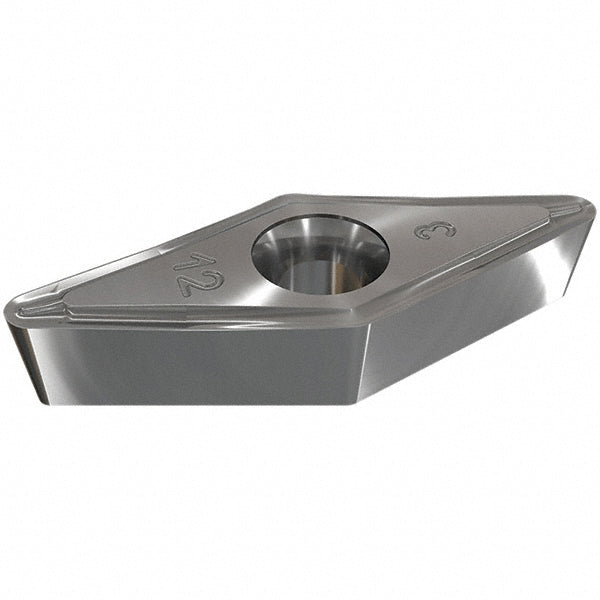

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550500
MFR# 5550500ISO/ANSI# ISO 13399Series Isoturn
$25.27List $32.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5550500 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code333
Insert styleVCMT
Insert thickness in3/16
Iso codeISO 13399
Length range0.6500 - 0.7000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1180
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
