Iscar

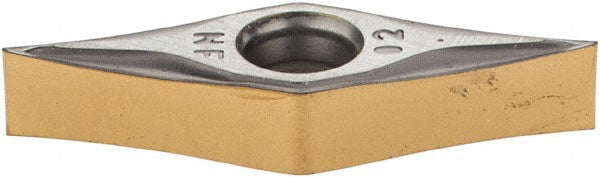

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550503
MFR# 5550503ISO/ANSI# ISO 13399Series Isoturn
$18.55List $23.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC9/32
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550503 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1100
Included angle35.0
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4882
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2.5
Insert styleVNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC807
Maximum depth of cut0.0984
Primary workpiece materialM; P; S
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
