Iscar

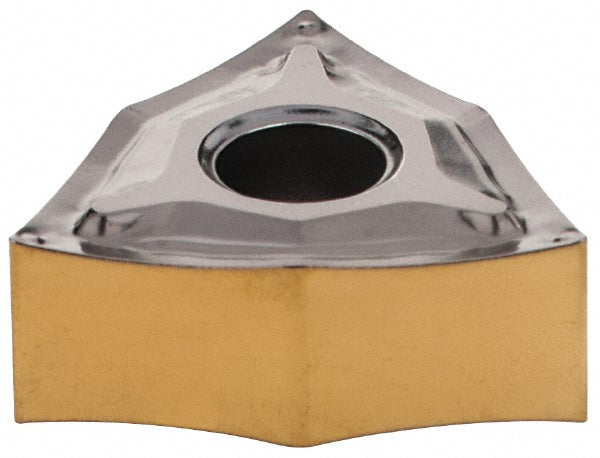

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550523
MFR# 5550523ISO/ANSI# ISO 13399Series Isoturn
$13.96List $17.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5550523 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Included angle80
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCarbide
Insert shapeTrigon
Insert size code330
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1181
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
