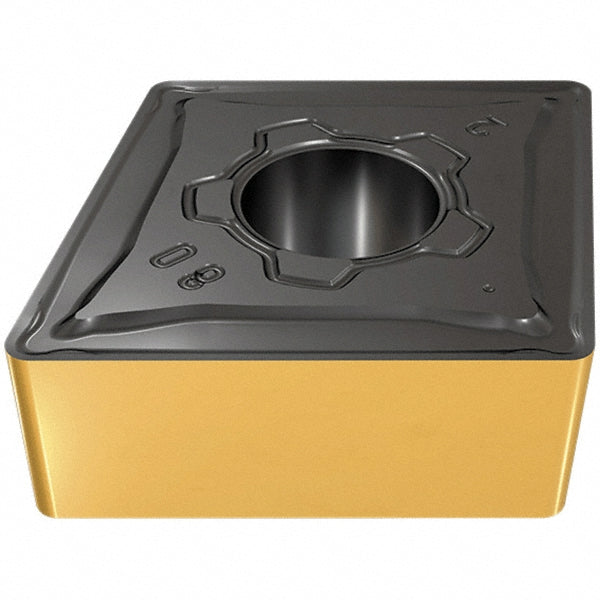

CNMG 433-M3M Carbide Insert, Grade IC6025, TiCN - Iscar 5560527

Iscar

CNMG 433-M3M Carbide Insert, Grade IC6025, TiCN - Iscar 5560527

MFR# 5560527ISO/ANSI# CNMG120412Cat# CNMG 433-M3MSeries Isoturn

$18.01List $23.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC6025
MaterialCarbide
CoatingTiCN

Description

The Iscar 5560527 is a CNMG 433-M3M carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeCNMG433
Ansi size code433
Chip breakerM3M
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to High Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 433-M3M
Iso insert codeCNMG120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 433-M3M
Manufacturer gradeIC6025
Maximum depth of cut0.1970
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
