Iscar

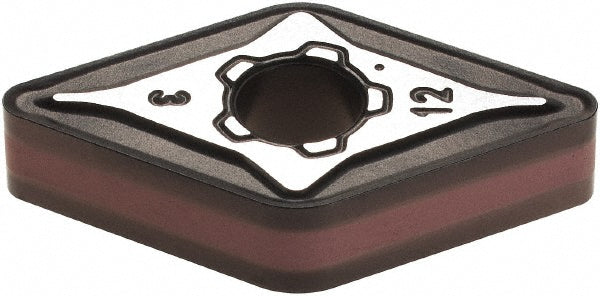

ISO 13399 Carbide Insert, Grade IC6025, TiCN - Iscar 5560528
MFR# 5560528ISO/ANSI# DNMG150412Series Isoturn
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC6025
MaterialCarbide
CoatingTiCN
Description
The Iscar 5560528 is a ISO 13399 carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.
Specifications
Ansi insert codeDNMG433
Ansi size code433
Chip breakerM3M
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to High Toughness
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeDNMG150412
Iso size code150412
Length range0.6000 - 0.6500
Manufacturer gradeIC6025
Maximum depth of cut0.1970
Primary workpiece materialStainless Steel
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
