Iscar

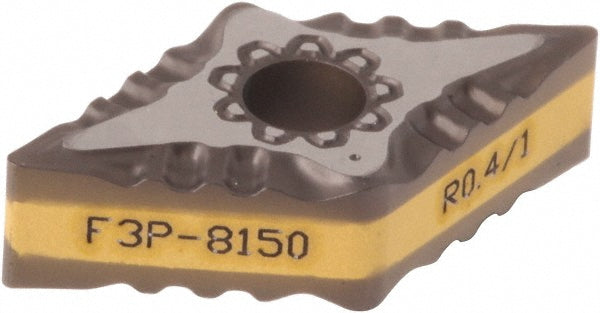

DNMG110404 Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5560576
MFR# 5560576ISO/ANSI# DNMG110404Series Isoturn
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5560576 is a DNMG110404 solid carbide indexable insert, grade IC8150, TiCN coated. Suited for p.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle55.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110404
Manufacturer gradeIC8150
Maximum depth of cut0.1180
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialK
StandardsISO 13399
Tolerance codeM
