Iscar

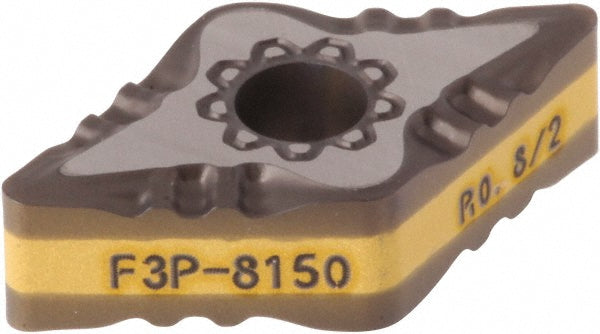

DNMG 332-F3P Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5560578
MFR# 5560578ISO/ANSI# DNMG 332-F3PSeries Isoturn
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5560578 is a DNMG 332-F3P solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1500
Included angle55.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.4580
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 332-F3P
Length range0.4000 - 0.5000
Manufacturer gradeIC8150
Maximum depth of cut0.1380
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
