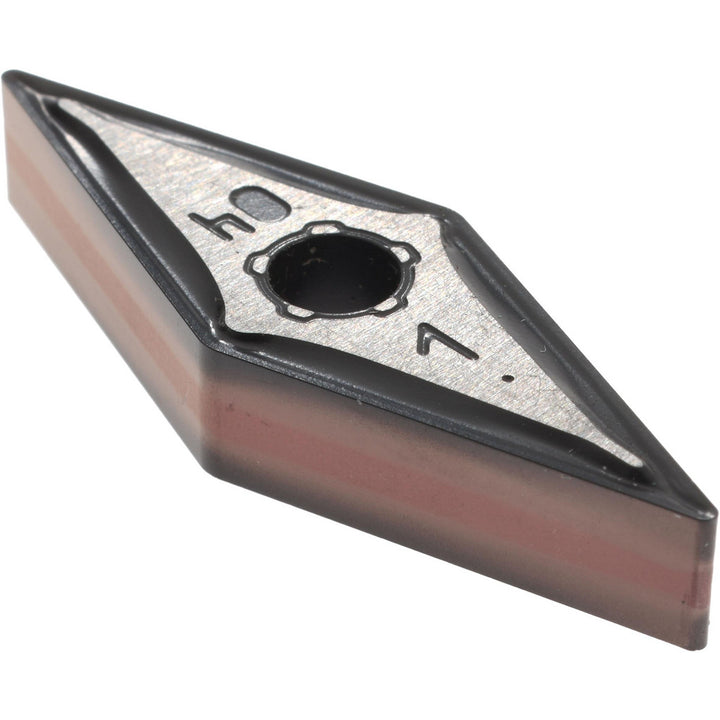

ISO 13399 Carbide Insert, Grade IC6015, TiCN - Iscar 5560580

Iscar

ISO 13399 Carbide Insert, Grade IC6015, TiCN - Iscar 5560580

MFR# 5560580ISO/ANSI# VNMG160404Series Isoturn

$28.85List $37.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC6015
MaterialCarbide
CoatingTiCN

Description

The Iscar 5560580 is a ISO 13399 carbide indexable insert, grade IC6015, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeVNMG331
Ansi size code331
Chip breakerM3M
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeVNMG160404
Iso size code160404
Length range0.6500 - 0.7000
Manufacturer gradeIC6015
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
