Iscar

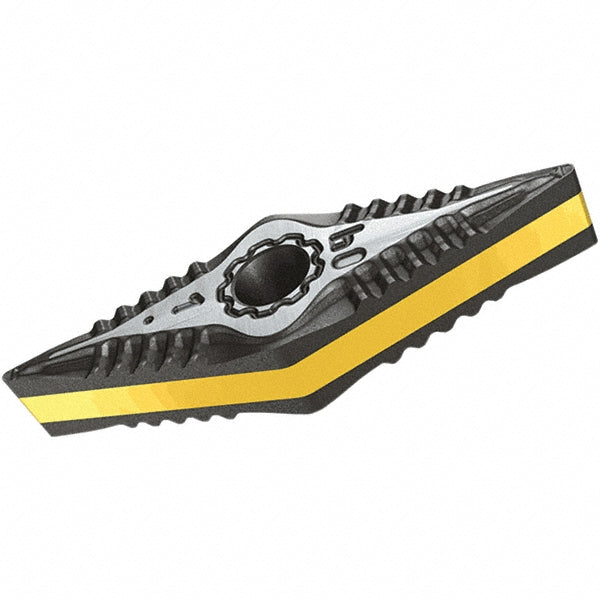

VNMG 332-F3P Carbide Insert, Grade IC8150, TiCN - Iscar 5560584
MFR# 5560584ISO/ANSI# VNMG 332-F3PSeries Isoturn
$28.85List $37.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8150
MaterialCarbide
CoatingTiCN
Description
The Iscar 5560584 is a VNMG 332-F3P carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 332-F3P
Length range0.6500 - 0.7000
Manufacturer gradeIC8150
Maximum depth of cut0.1180
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
