Iscar

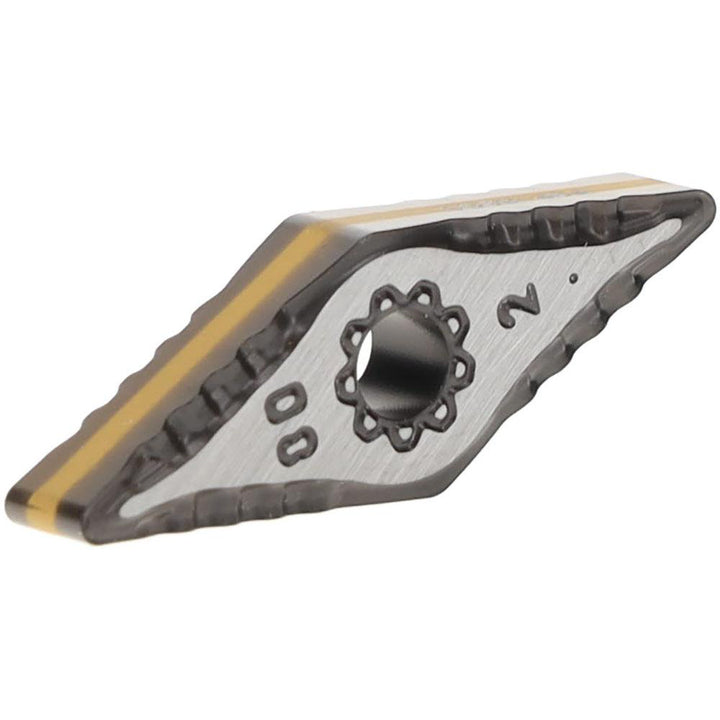

VNMG 332-F3P Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5560585
MFR# 5560585ISO/ANSI# VNMG 332-F3PSeries Isoturn
$28.85List $37.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5560585 is a VNMG 332-F3P solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 332-F3P
Length range0.6500 - 0.7000
Manufacturer gradeIC8250
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
