Iscar

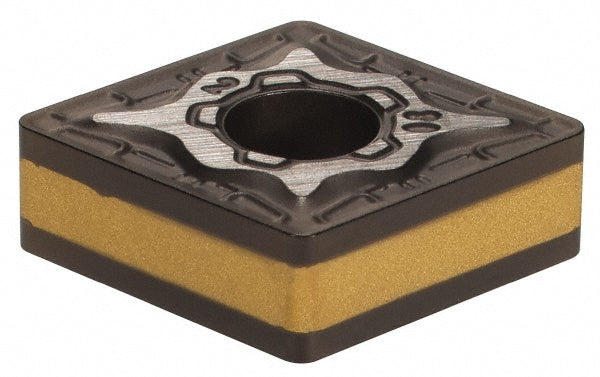

CNMG 432-M3P Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5566680
MFR# 5566680ISO/ANSI# CNMG 432-M3PSeries Isoturn
$18.01List $23.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566680 is a CNMG 432-M3P solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerM3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432-M3P
Length range0.5000 - 0.6000
Manufacturer gradeIC8150
Maximum depth of cut0.2170
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
