Iscar

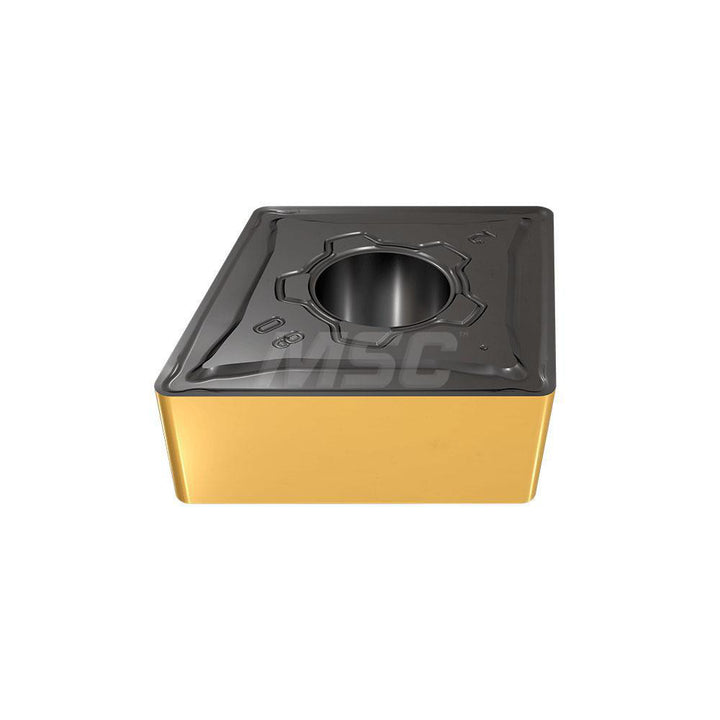

CNMG 331-M3M Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5566734
MFR# 5566734ISO/ANSI# CNMG 331-M3MSeries Isoturn
$12.40List $15.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5566734 is a CNMG 331-M3M solid carbide indexable insert, grade IC806, TiAlN coated. Suited for p.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.3810
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 331-M3M
Length range0.3000 - 0.4000
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1570
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialP
RakePositive
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
