Iscar

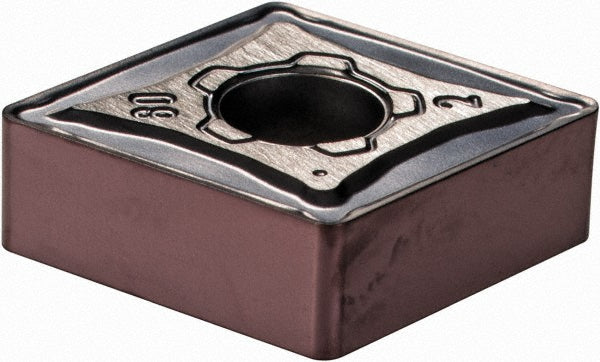

CNMG 432-M3M Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5566736
MFR# 5566736ISO/ANSI# CNMG 432-M3MSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5566736 is a CNMG 432-M3M solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432-M3M
Length range0.5000 - 0.6000
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1970
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
