Iscar

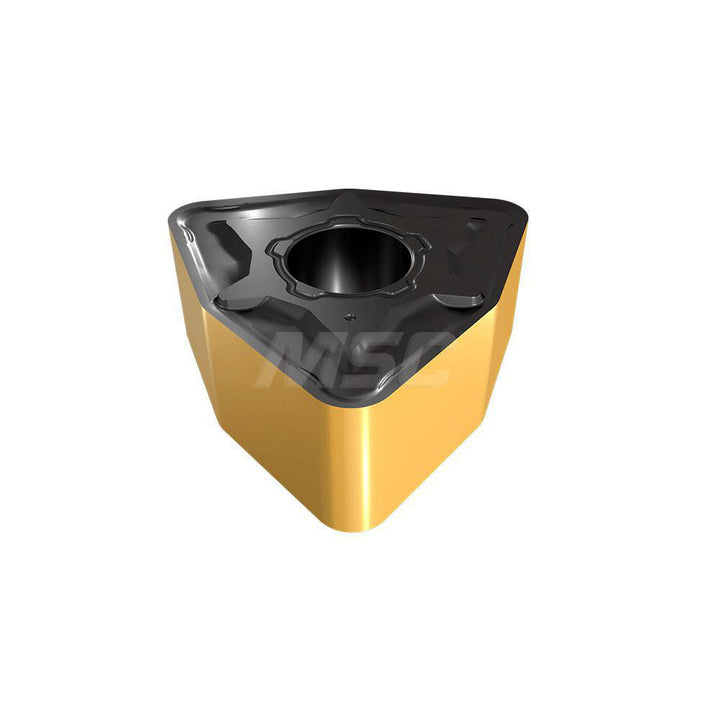

WNMG 333-M3M Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5566739
MFR# 5566739ISO/ANSI# WNMG 333-M3MSeries Isoturn
$13.96List $17.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5566739 is a WNMG 333-M3M solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Full radiusNo
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2570
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code333
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 333-M3M
Length range0.0000 - 0.3000
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1380
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
