Iscar

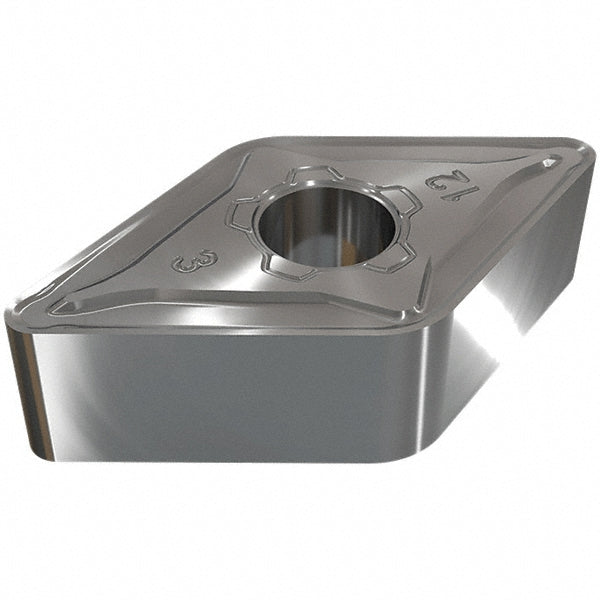

DNMG 442-M3M Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5566747
MFR# 5566747ISO/ANSI# DNMG 442-M3MSeries Isoturn
$25.11List $32.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5566747 is a DNMG 442-M3M solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code442
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 442-M3M
Length range0.6000 - 0.6500
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1970
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
