Iscar

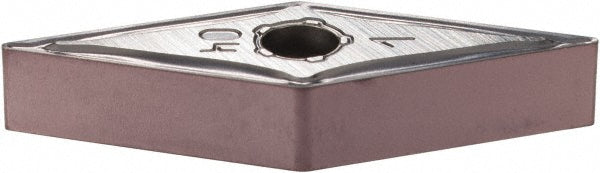

VNMG 331-M3M Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5566749
MFR# 5566749ISO/ANSI# VNMG 331-M3MSeries Isoturn
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5566749 is a VNMG 331-M3M solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Full radiusNo
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 331-M3M
Length range0.6500 - 0.7000
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1180
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle0
Single or double endDouble
StandardsISO 13399
Tolerance codeM
