Iscar

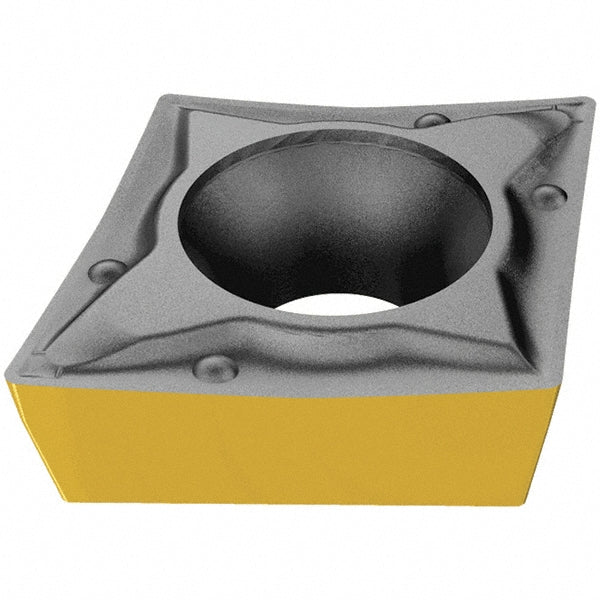

CCMT 2-1-PF Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5566751
MFR# 5566751ISO/ANSI# CCMT 2-1-PFSeries Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5566751 is a CCMT 2-1-PF solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 2-1-PF
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.0980
Multi use applicationBoring; Chamfering
Multi use toolYes
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle7
Single or double endSingle
StandardsISO 13399
Tolerance codeM
