Iscar

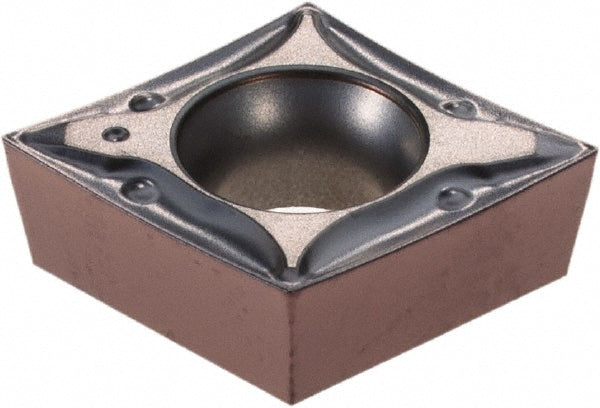

CCMT 3-0-PF Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5566752
MFR# 5566752ISO/ANSI# CCMT 3-0-PFSeries Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5566752 is a CCMT 3-0-PF solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Full radiusNo
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 3-0-PF
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1180
Multi use applicationBoring; Chamfering
Multi use toolYes
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle7
Single or double endSingle
StandardsISO 13399
Tolerance codeM
