Iscar

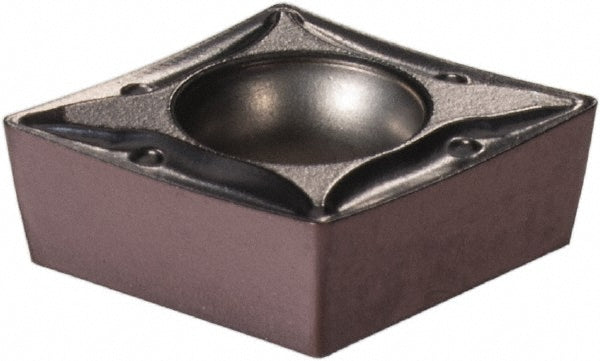

CCMT 3-1-14 Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5566755
MFR# 5566755ISO/ANSI# CCMT 3-1-14Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5566755 is a CCMT 3-1-14 solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy.
Specifications
Chip breaker14
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 3-1-14
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1180
Primary workpiece materialSuperalloy
RakePositive
Relief angle7
Single or double endSingle
StandardsISO 13399
Tolerance codeM
