Iscar

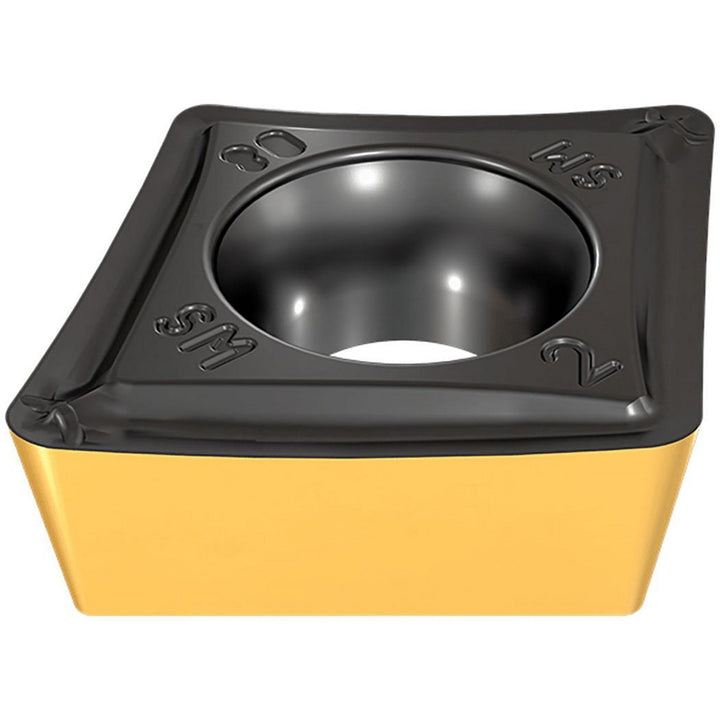

CCMT 431-SM Carbide Insert, Grade IC806, TiAlN - Iscar 5566756
MFR# 5566756ISO/ANSI# CCMT120404Series Isoturn
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC806
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5566756 is a CCMT 431-SM carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy, titanium.
Specifications
Ansi insert codeCCMT431
Ansi size code431
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2170
Included angle80
Inscribed circle in1/2
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 431-SM
Iso insert codeCCMT120404
Iso size code120404
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1380
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
