Iscar

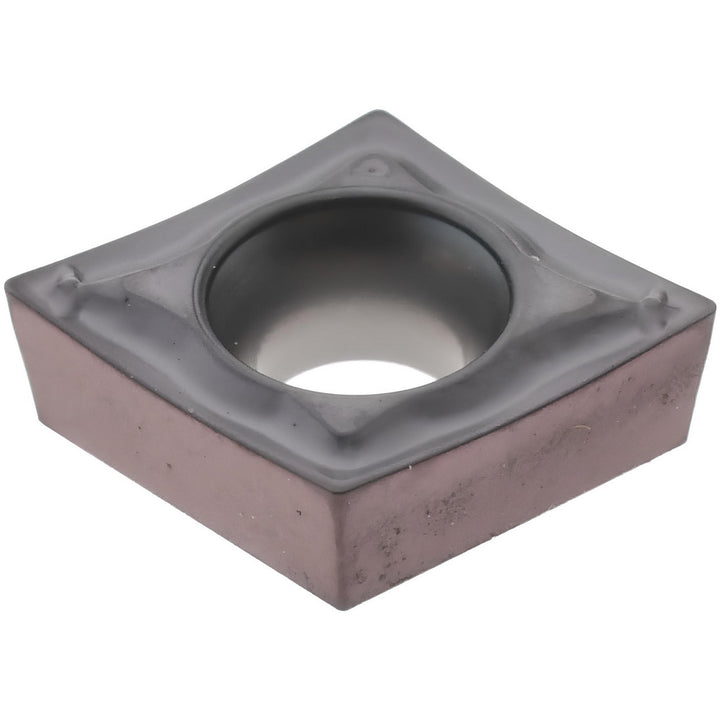

ISO 13399 Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5566757
MFR# 5566757ISO/ANSI# ISO 13399Series Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5566757 is a ISO 13399 solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code20
Insert styleCCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.0790
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
