Iscar

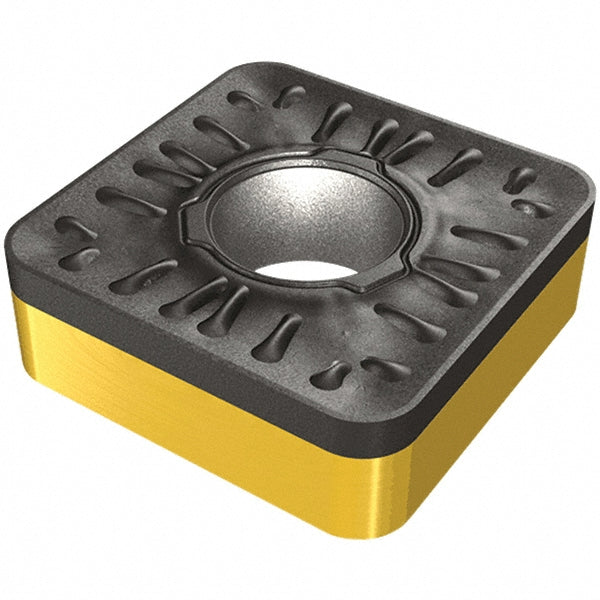

SNMM 544-R3P Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5566806
MFR# 5566806ISO/ANSI# SNMM 544-R3PSeries Isoturn
$26.74List $33.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5566806 is a SNMM 544-R3P solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerR3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Full radiusNo
Included angle90.0
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code544
Insert styleSNMM
Insert thickness in1/4
Iso codeSNMM 544-R3P
Manufacturer gradeIC8250
Maximum depth of cut0.3740
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
Relief angle0
Secondary workpiece materialNone
Single or double endSingle
StandardsISO 13399
Tolerance codeM
Width in5/8
