Iscar

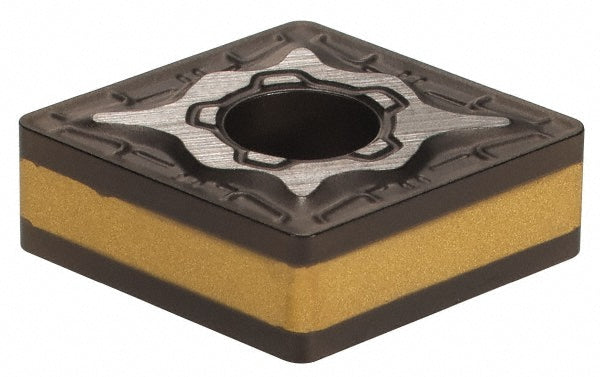

CNMG 432-F3P Carbide Insert, Grade IC8150, TiCN - Iscar 5566812
MFR# 5566812ISO/ANSI# CNMG120408Series Isoturn
$18.01List $23.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC8150
MaterialCarbide
CoatingTiCN
Description
The Iscar 5566812 is a CNMG 432-F3P carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerF3P
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432-F3P
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturer gradeIC8150
Maximum depth of cut0.1380
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
